Ideal for use with bow thrusters, anchor windlasses or other high current consumers

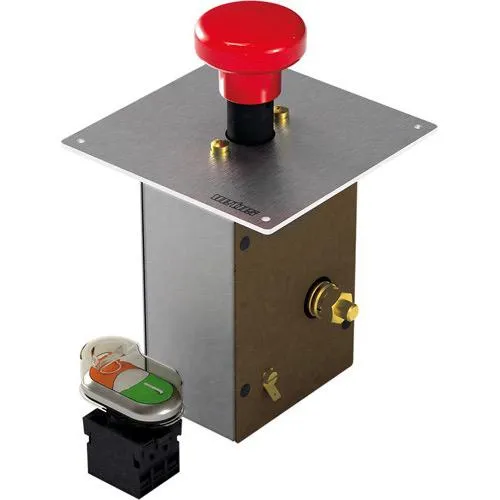

A remotely controlled battery switch is in many countries required by law. The BPMAIN can be remotely controlled electrically or activated by hand in an emergency. The switch should be fitted as close as possible to the battery of the bow thruster or other consumers, and should be placed in a position where the red emergency stop button is within reach. For switching on/off a control panel is supplied with pre-wired loom and multi-plugs.

Specifications

Available in 12 or 24 Volt D.C.

Extension looms and control panels are optional

Maximum load 250 Amps continuous or 800 Amps for 3 minutes

Note:
When a 24 Volt bow thruster is connected to a 12 Volt circuit by a series/parallel switch, a 12 Volt battery main switch must be selected. When a 48 Volt bow thruster is connected to a 24 Volt circuit by a series/parallel switch, a 24 Volt main switch must be used.
