Name: Flame Tech Medium Duty Alternate Fuel Gas Regulator VMFR-22
SKU: 468760

Flame Tech® Medium Duty Alternate Fuel Gas Regulator - CGA 510 Victor® Style VMFR-22

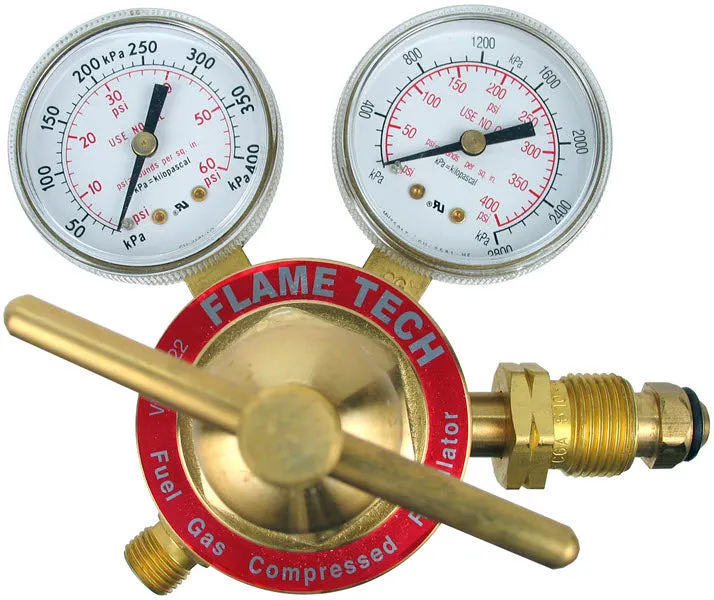

The Flame Tech® VMFR-22 is a Victor®-style medium duty alternate fuel gas regulator with a CGA 510 (male) inlet. This industrial gas regulator features solid brass body, bonnet and "T" pressure adjustment screw. Large 2.5 inch gauges display tank pressure, working pressure and have sturdy acrylic screw-on lenses. The inlet features sintered metal filter to prevent impurities from entering the regulator.

Flame Tech medium duty fuel gas regulators have a maximum inlet pressure of 400 PSIG and a working pressure range from 2-40 PSIG. This product is UL® listed.

Suitable for use with

Propane

Propylene

MAPP

Specs

Inlet - CGA 510

Max Inlet Pressure - 400 PSIG

Working Pressure - 2-40 PSIG

Outlet - 9/16" - 18LH (M) CGA "B"

Body - brass
