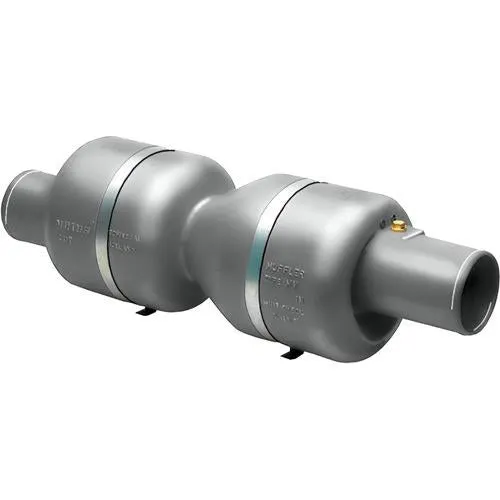

This system is only applicable to water-injected exhaust systems and is perfect for fast craft with powerful engines without available space for installation of a waterlock and/or gooseneck. By using this compact system you have tremendous reduction of exhaust noise with minimal back pressure. All parts are made of synthetic materials, corrosion free and light weight.

The transom connections for this system are available in stainless steel (AISI 316) or reinforced black plastic. Both the waterlock and the transom connection are provided with a check valve which prevents the seawater from flowing into the engine.
Should be installed exclusively in combination with an approved reinforced rubber exhaust hose.

Specifications

• For hose diameters Ø 90,100, 125 and 150 mm
• Comes with stainless steel (AISI 316) mounting brackets for muffler
• Temperature sensor for a raw water alarm is optional (recommended)

  Capacity: 11.5L

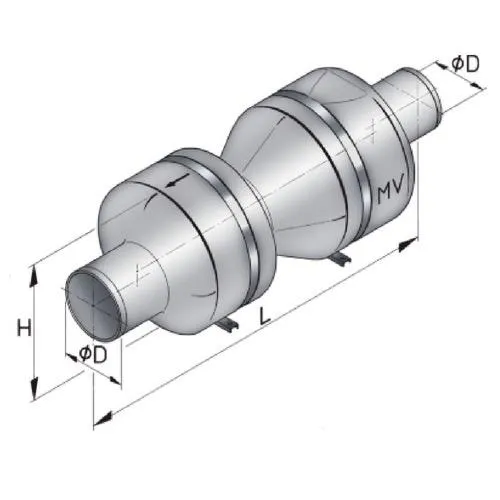

  Diagram H: Ø210mm
  Diagram L: 702mm

  Capacity: 37L

  Diagram H: Ø320mm
  Diagram L: 910mm
