| Description_ABR |
FU REG |
| Description_DEF |
Fuel Pressure Regulator |
| Description_DES |
REGULATOR |
| Description_EXT |
Edelbrock Carbureted Non-Bypass Style Fuel Pressure Regulator, 160 GPH |
| Description_EXT |
Edelbrock Carbureted Non-Bypass Style Fuel Pressure Regulator; 160 GPH |
| Description_FAB |
Have Fluorosilicone Diaphragm Material |
| Description_FAB |
Machined From Aircraft-Quality Aluminum |
| Description_FAB |
Manufactured By Essex Industries |
| Description_FAB |

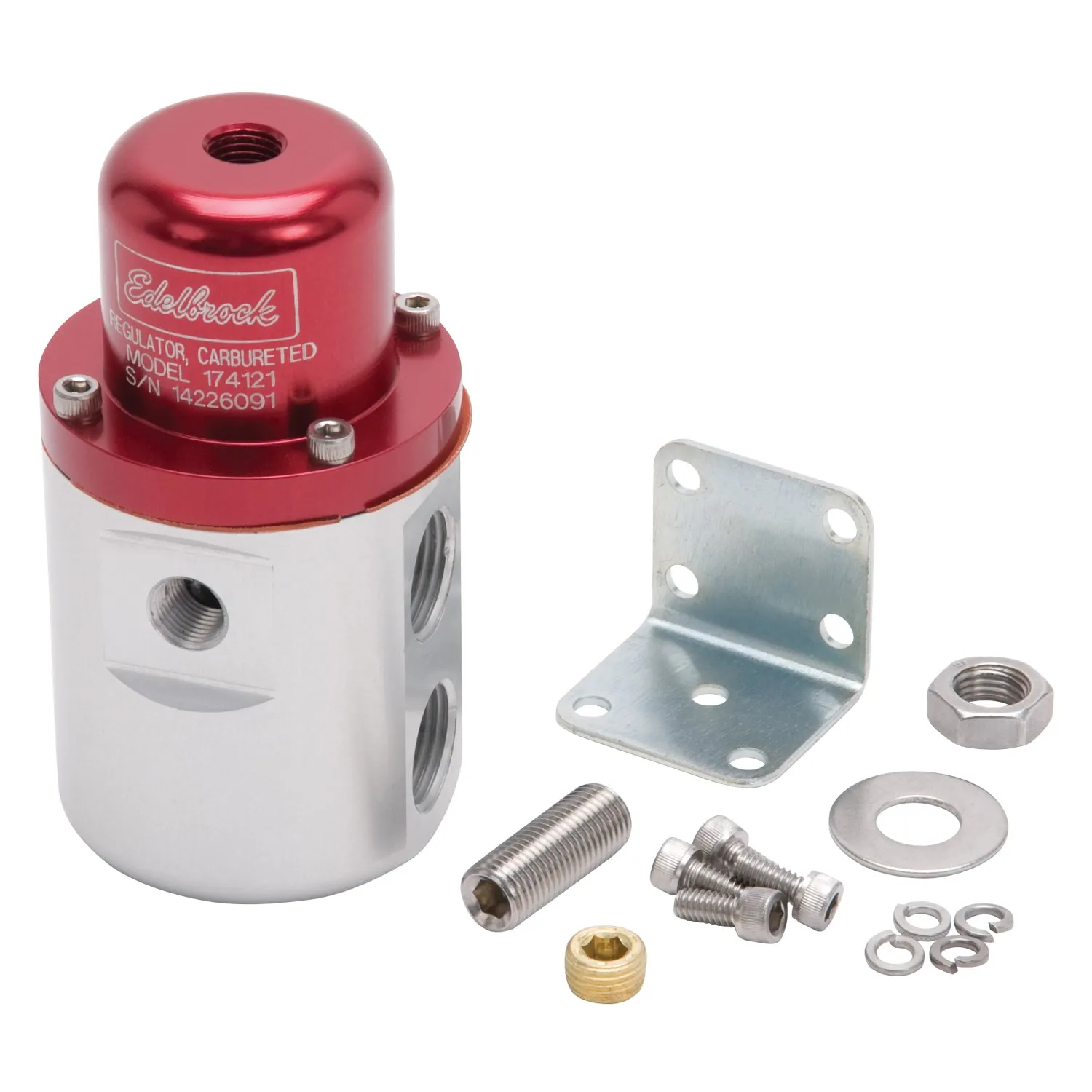

Mounting Bracket/Fittings/Hardware Included |
| Description_INV |
Fuel Pressure Regulator |
| Description_KEY |
174121; Edelbrock; fuel pressure; Fuel pressure regulator; Regulator; Carburetor; Carb; pressure; adjustable; gauge port; 160GPH |
| Description_LAB |
Carbureted Adjustable Non Bypass Fuel Pressure Regulator (160 GPH) in Red Finish |
| Description_MKT |

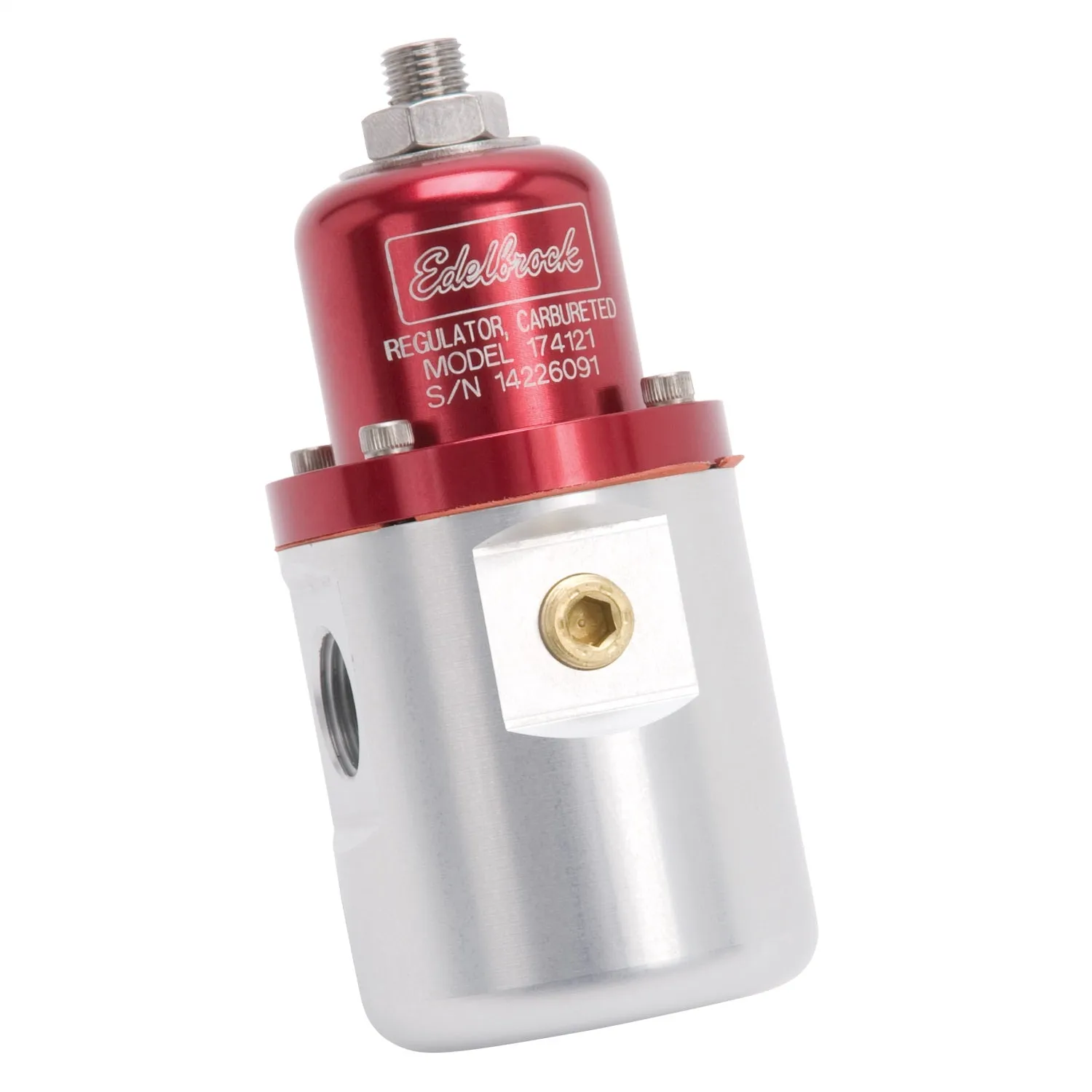

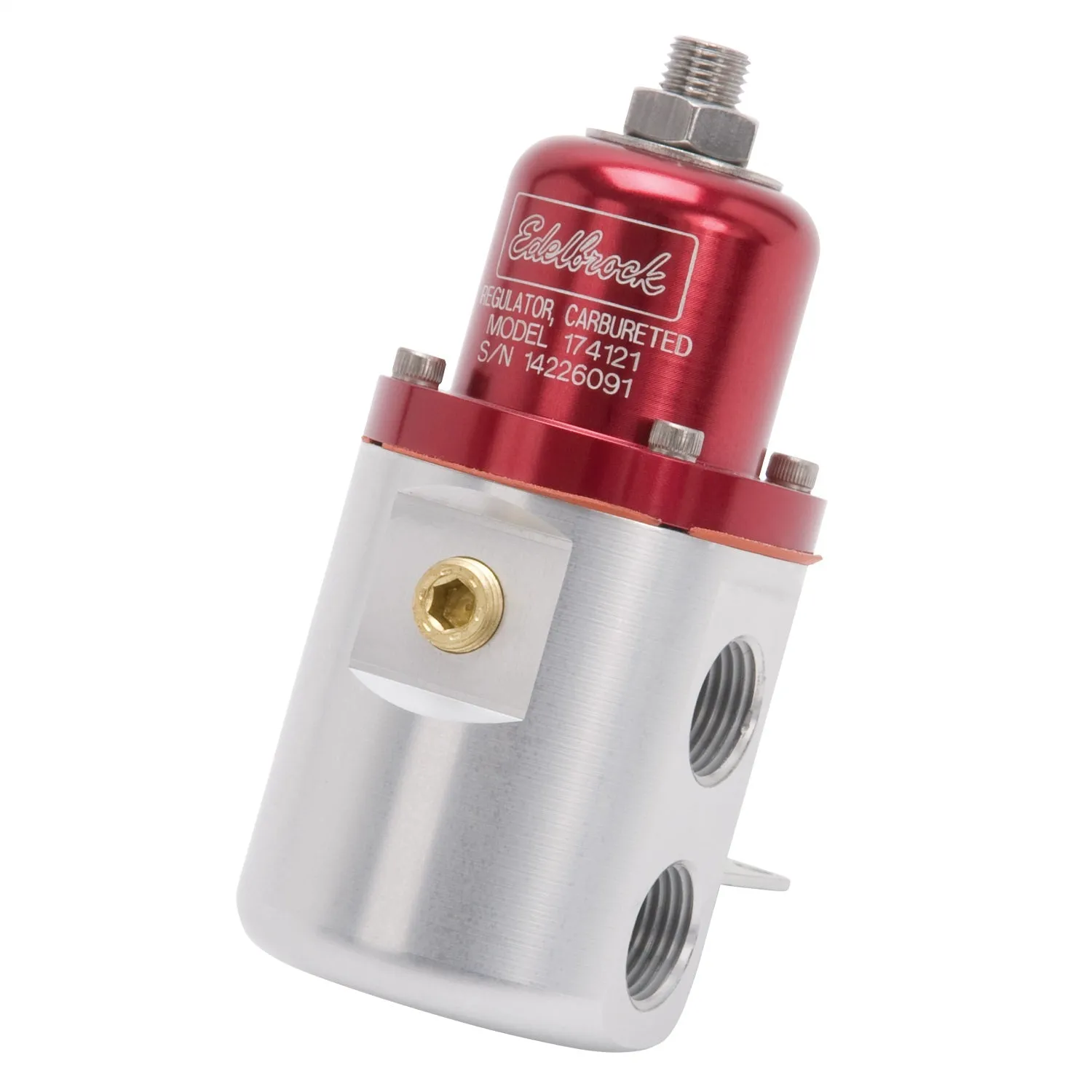

This Edelbrock fuel pressure regulator #174121 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174121 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. |
| Description_SHO |
{ Sellable : Yes } |
| Description_SHP |
{ eo : 0in.} |
| height |
3.0 |
| Inlet Port Diameter |
0.375 |
| Inlet Type |
Threaded |
| length |
4.0 |
| LTL |
N |
| Mounting Type |
Bracket |
| Outlet Port Diameter |
0.375 |
| Outlet Type |
Threaded |
| Port Quantity |
4 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight |
1.05 |
| width |
4.5 |
