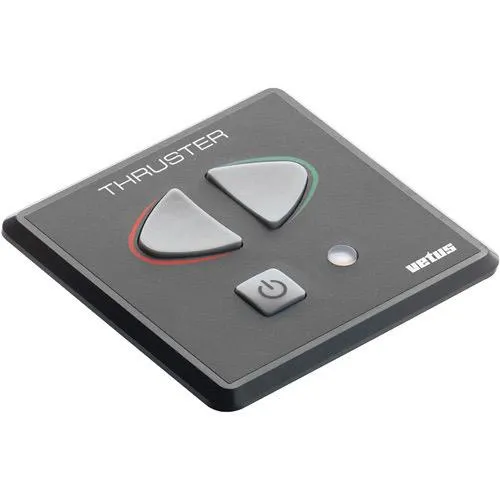

Control panels type 2 (EZDOCK2, BPSE2, BPJE2 & BPJDE2) are protected against accidental or unauthorised operation and circuit overload. They have a panel power indicator and warning LED and buzzer in case of continuous running for more than 2 minutes. These panels are easily interconnected and can be fitted at any helm position. The BPSE2, BPJE2, BPJDE2, and EZDOCK2 share the same technical safety features.

The EZDOCK2 combines twin joysticks into one easy operating knob, see the picture on the right. Because the use of hall effect sensors these panels are completely watertight.

Voltage: 12/24V

Front panel: 85 x 85mm

Bezel: Synthetic

Ingression protected: IP65

Built-in depth: 90mm

Cut-size: Ø 75mm

Child protection: Yes
