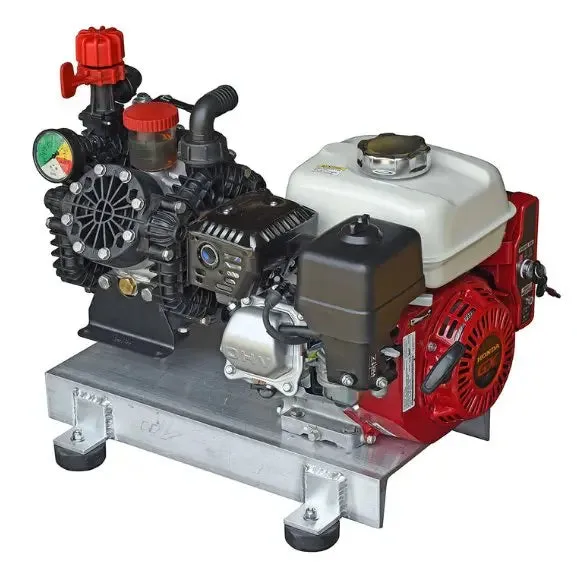

This low pressure diaphragm pump consists of polypropylene materials to handle use with many common agricultural chemicals, as well as some of the more aggressive ones, making it ideal for agricultural spraying, lawn care, turf spraying, de-icing, firefighting, liquid fertilizing, boom spraying, and much more.
Specifications:
- Max. Flow: 11.4 gpm
- Max. Pressure: 290 psi
- Max. Rated Speed: 550 RPM
- Max. Fluid Temperature: 140° F
- Max. Power: 2.1 HP
- Port Sizes: 1 1/4" inlet, 1/2" HB outlet, 3/4" HB bypass
- Shaft: 3/4" hollow shaft for gas engine mount
- Reinforced polypropylene, Kynar, and AISI 316 L liquid handling parts
- Three semi-hydraulic Viton diaphragms
- Viton seals
- Die-cast casing with oil-immersed mechanism
- Oil drainage stopper
- Precision die cast crankcase shell
- AISI 304 SST fasteners
- Heavy duty mounting rails
- Rugged feet secured to pump casing
- Weight: 40 lb.
- Shaft: 3/4" solid keyed
- Bore x stroke: 68 x 45 mm
- Displacement: 163 cm3
- Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
- Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
- PTO shaft rotation: Counterclockwise from PTO shaft side
- Compression ratio: 9.0 : 1
- Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
- Carburetor: Butterfly
- Ignition system: Transistorized magneto
- Lubrication system: Splash
- Governor system: Centrifugal mechanical
- Air cleaner: Dual element
- Oil capacity: 0.61 US qt. (0.58 L)
- Fuel tank capacity: 3.3 US qts (3.1 liters)
- Fuel: Unleaded 86 octane or higher
- Dry weight 33 lbs (15.1 kg)
- Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
