Brand: Aeromotive
Manufacturer's Part Number: 13133
Part Type: Fuel Pressure Regulators
Product Line: Aeromotive Extreme Flow EFI Fuel Pressure Regulators
Automotive Fittings Part Number: AEI-13133
UPC: 00684980005875
Regulator Pressure (psi): 30-120
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -8AN and -10AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 4
Regulator Outlet Size: -8 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -10 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Features 0.500 in. high flow valve seat to support 7-26 GPM fuel pumps.
Description:

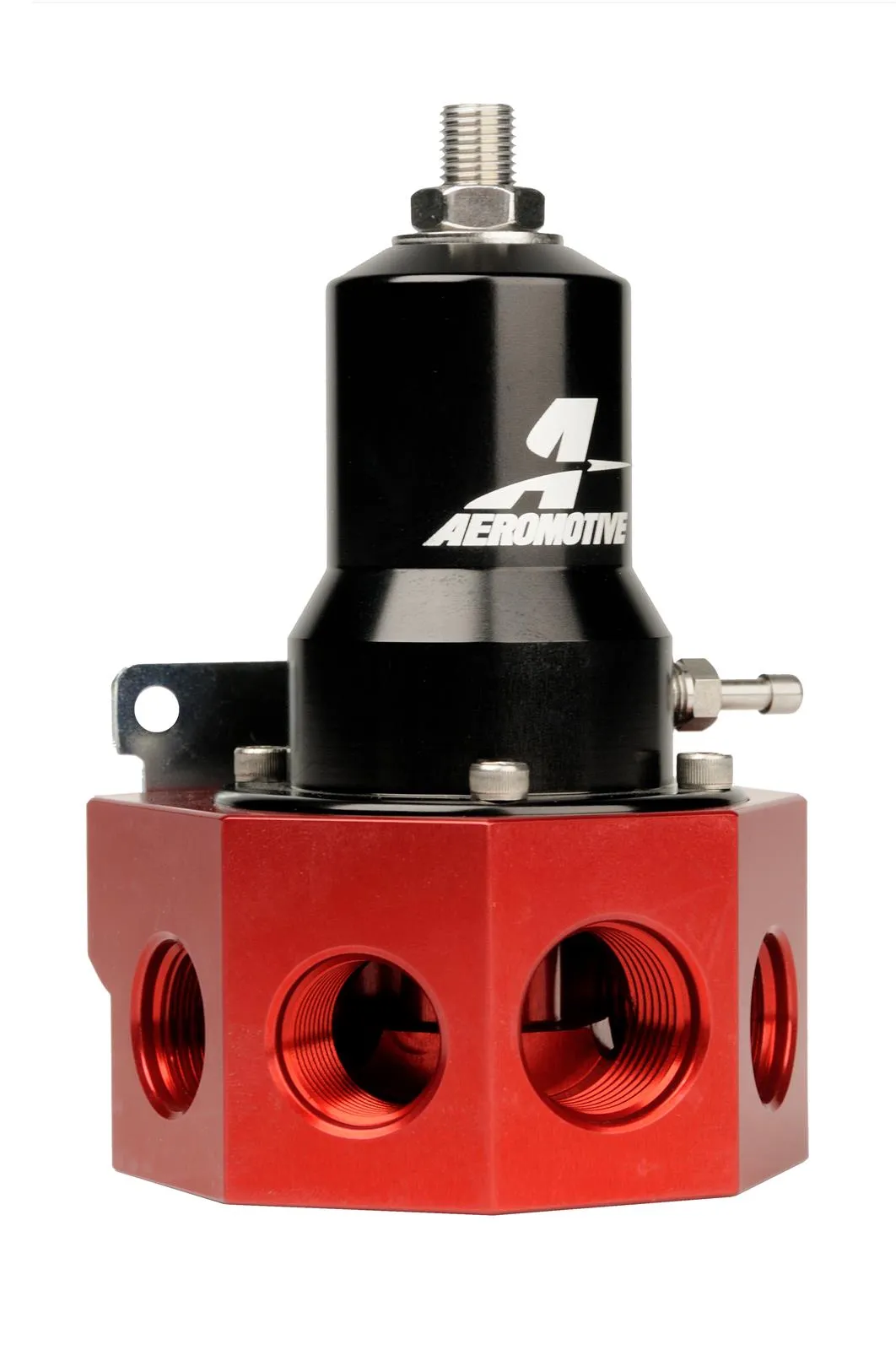

Control your fuel pressure with one of these Aeromotive Extreme Flow EFI fuel pressure regulators. They're manufactured from durable aluminum, then anodized for maximum protection. The regulators include a standard spring (installed) that supports 30-75 psi base fuel pressure and a high pressure spring (included) to support 75-120 psi base fuel pressure. Aeromotive Extreme Flow EFI fuel pressure units also support vacuum and boost reference on a 1:1 ratio.
